Professional : Architectural Drafting

Above: a site plan for an events center in Reno, NV. Project information – undisclosed. Participated in preliminary programming and building arrangement, field visits, measurements, drafting as-built conditions, and carrying each drawing set for each building to design development in RevIt. Additional information from the civil consultant was also captured and included in this site design to determine deck rises, finish floor heights and ramp needs for the site.

COMMERCIAL PROJECT

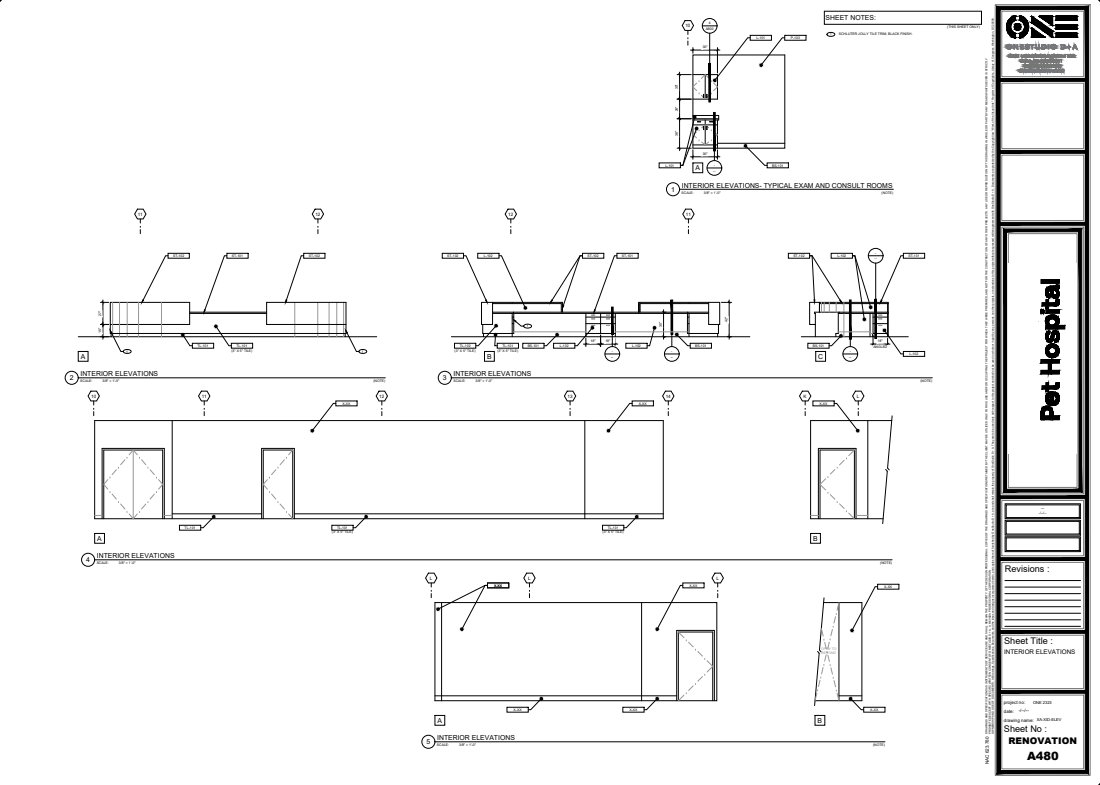

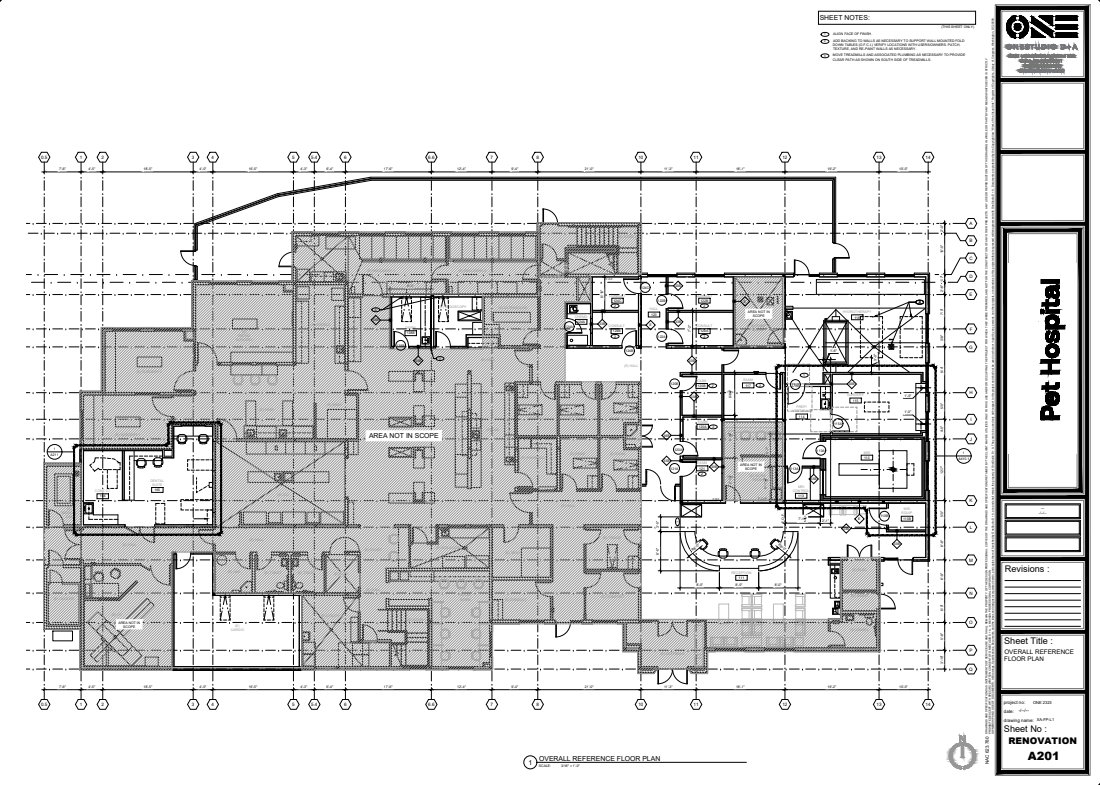

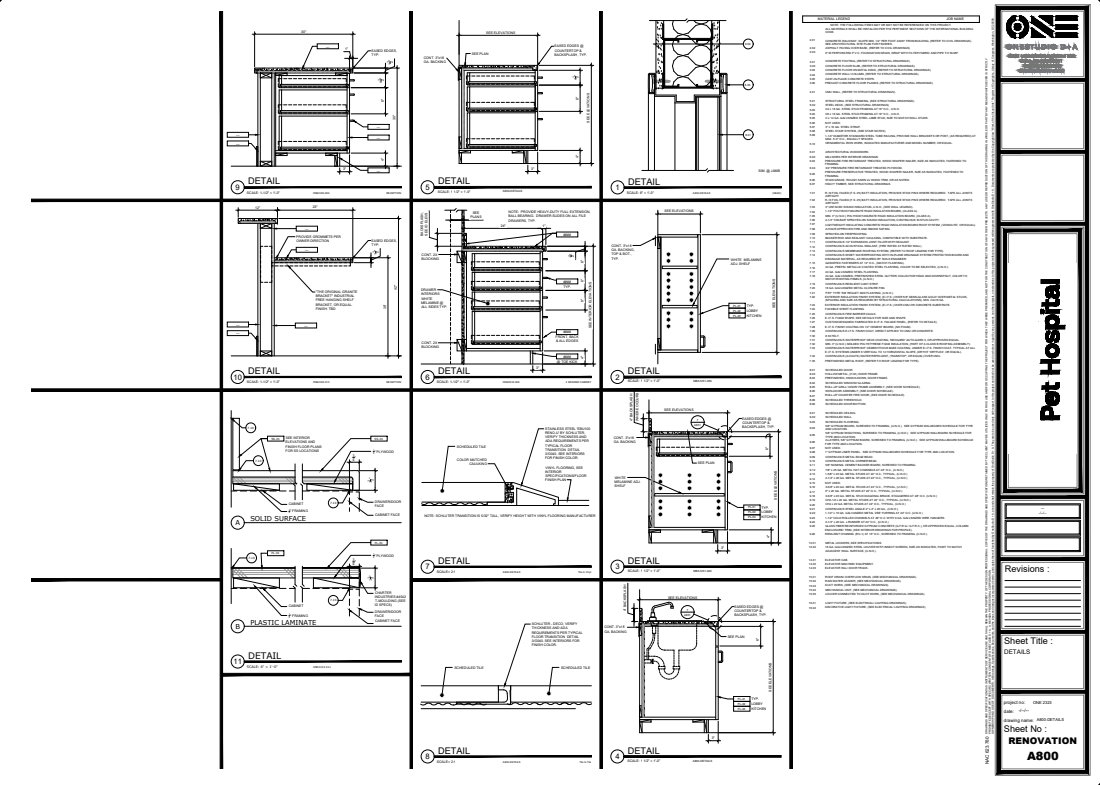

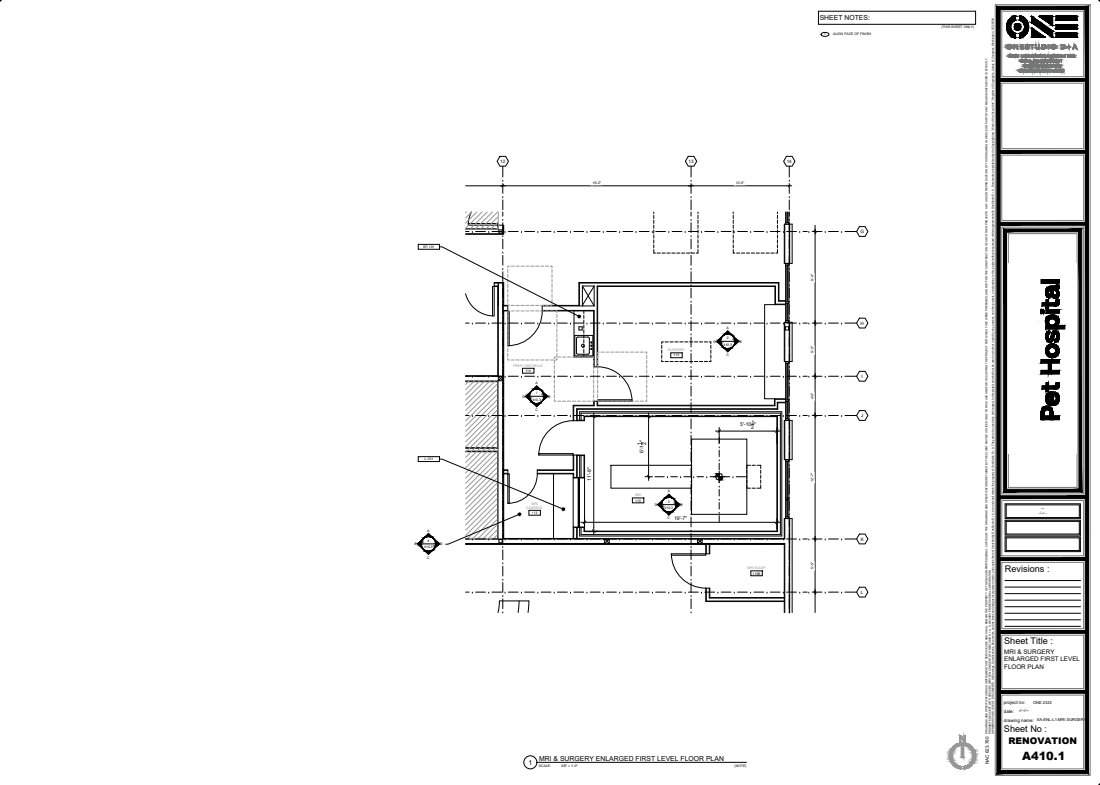

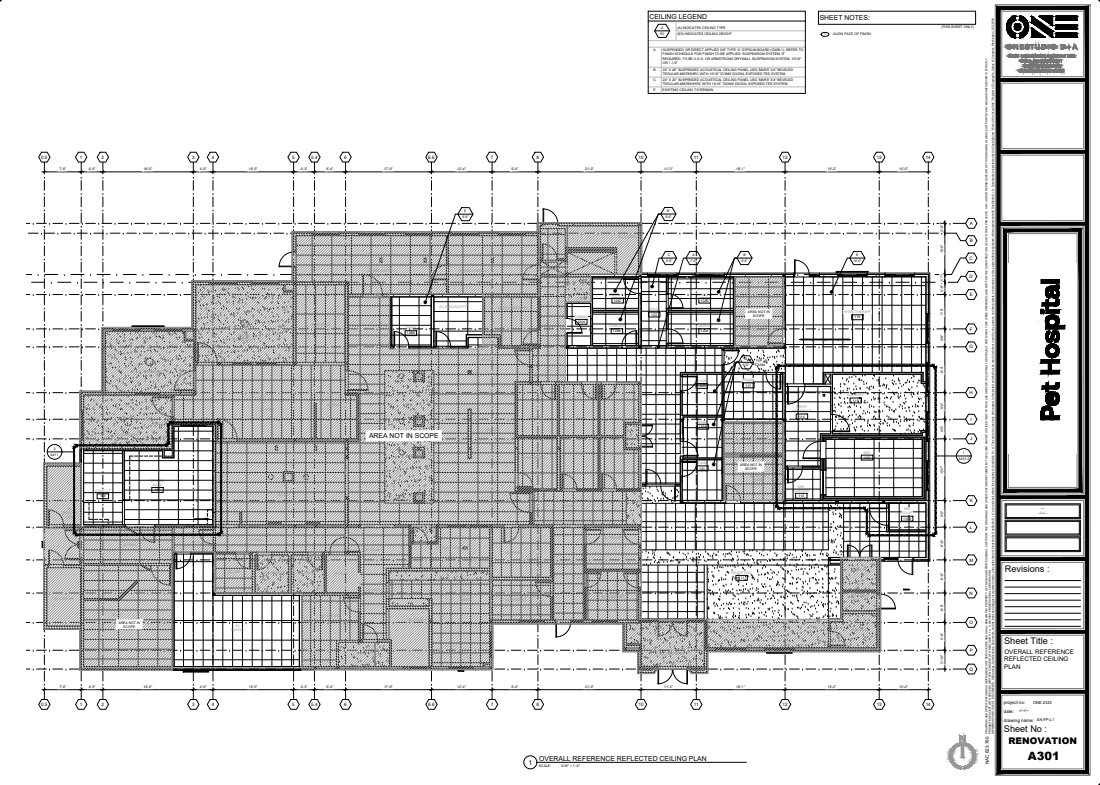

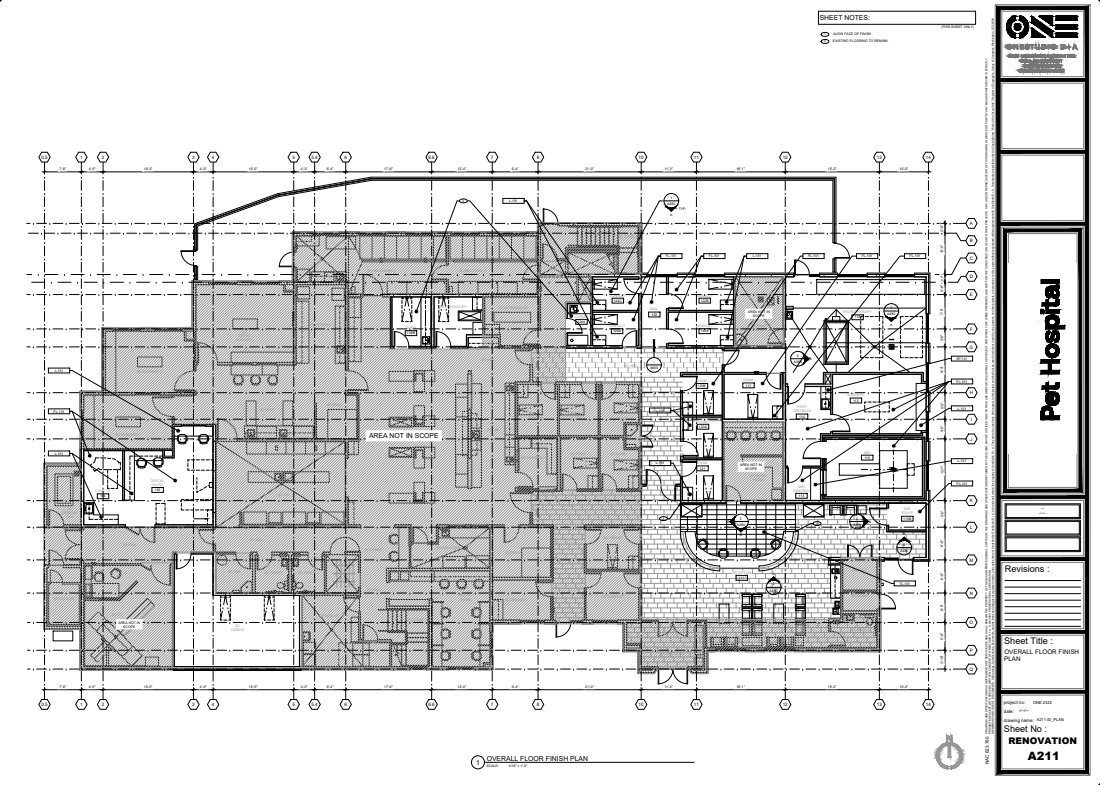

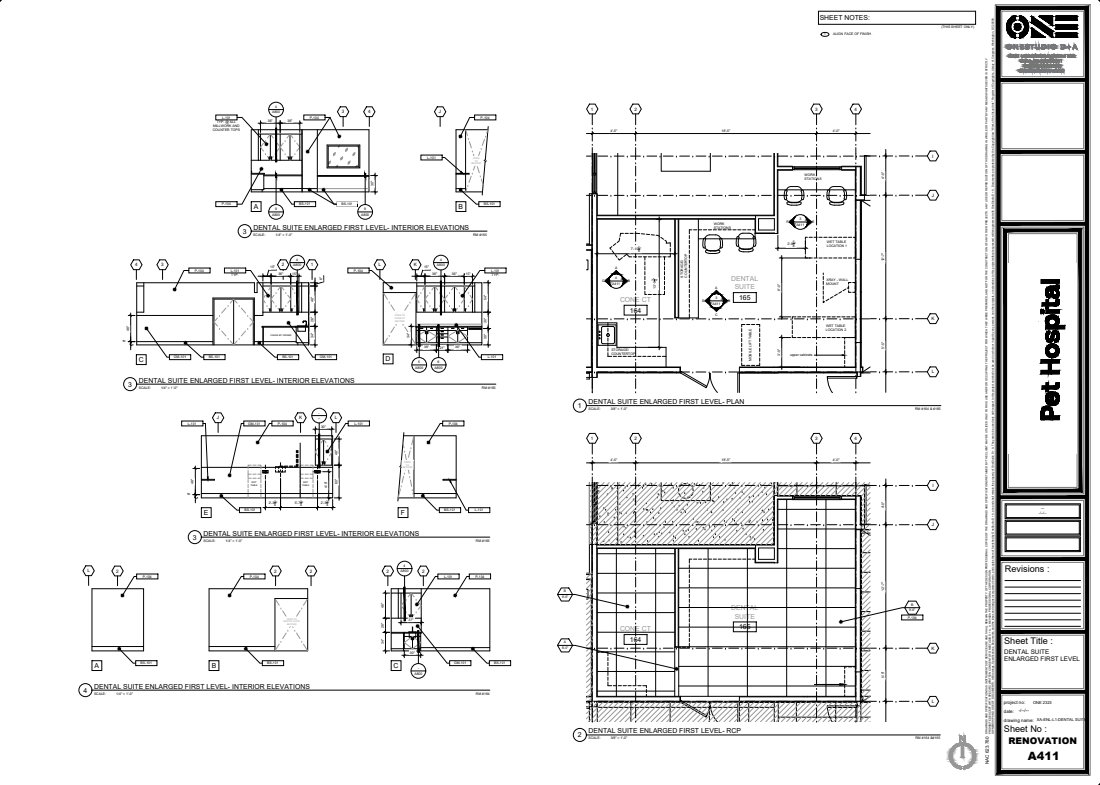

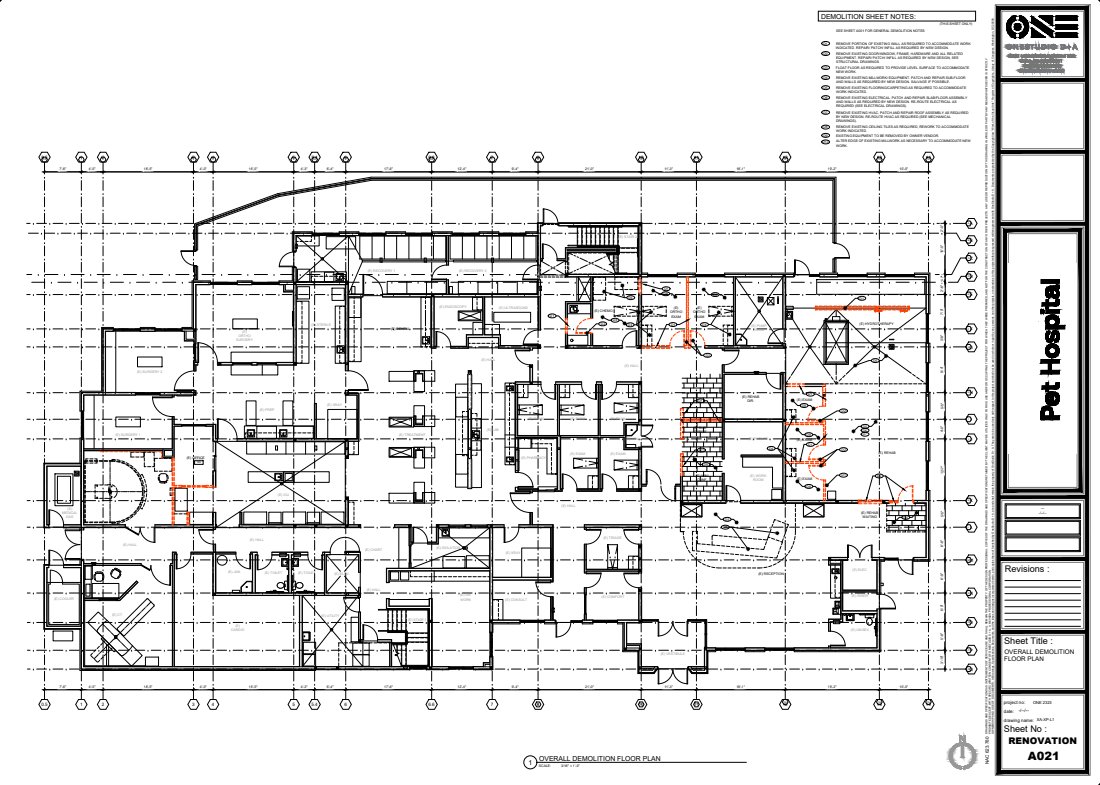

Below is a peak into the renovation of two areas in an existing pet hospital. I supported this by extracting existing drawing data and converting the data needed to capture the area of work. I also drafted any additional information needed to address the project. Depicted below, the Design Development phase. I saw this project through from schematic to construction drawing phase under the supervision of OneStudio D+A. (Click the right side of the image to view the complete set).

COMMERCIAL PROJECT

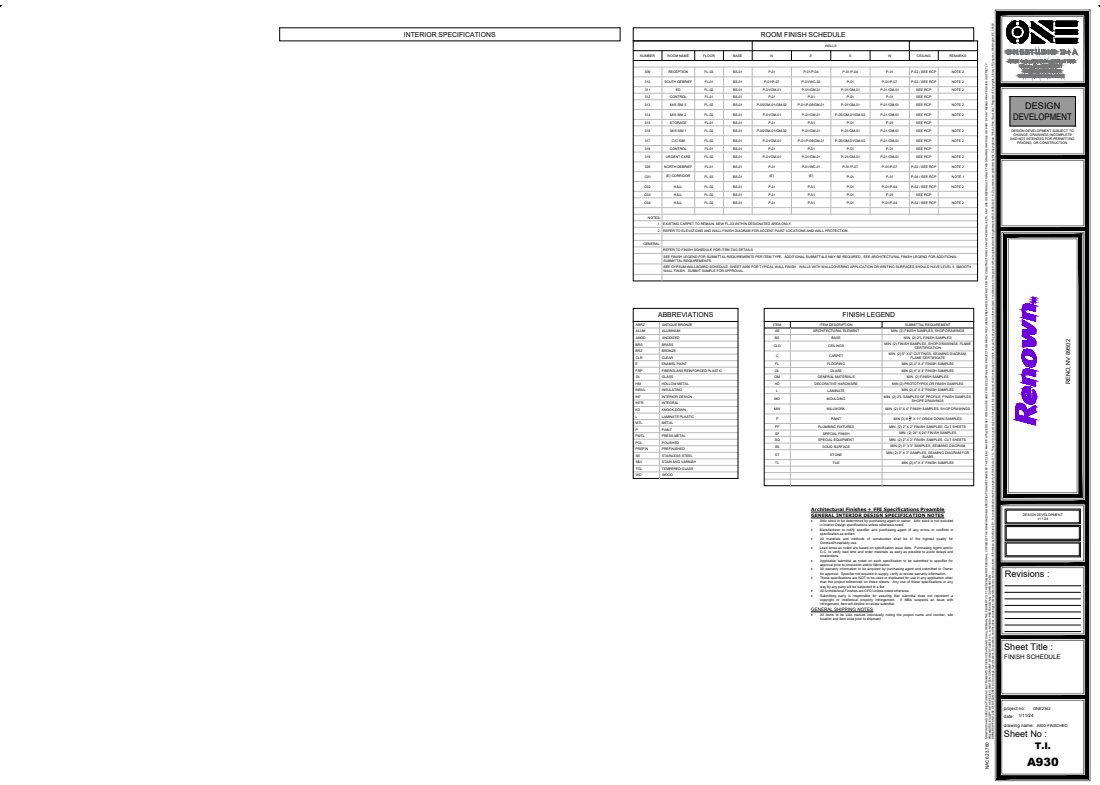

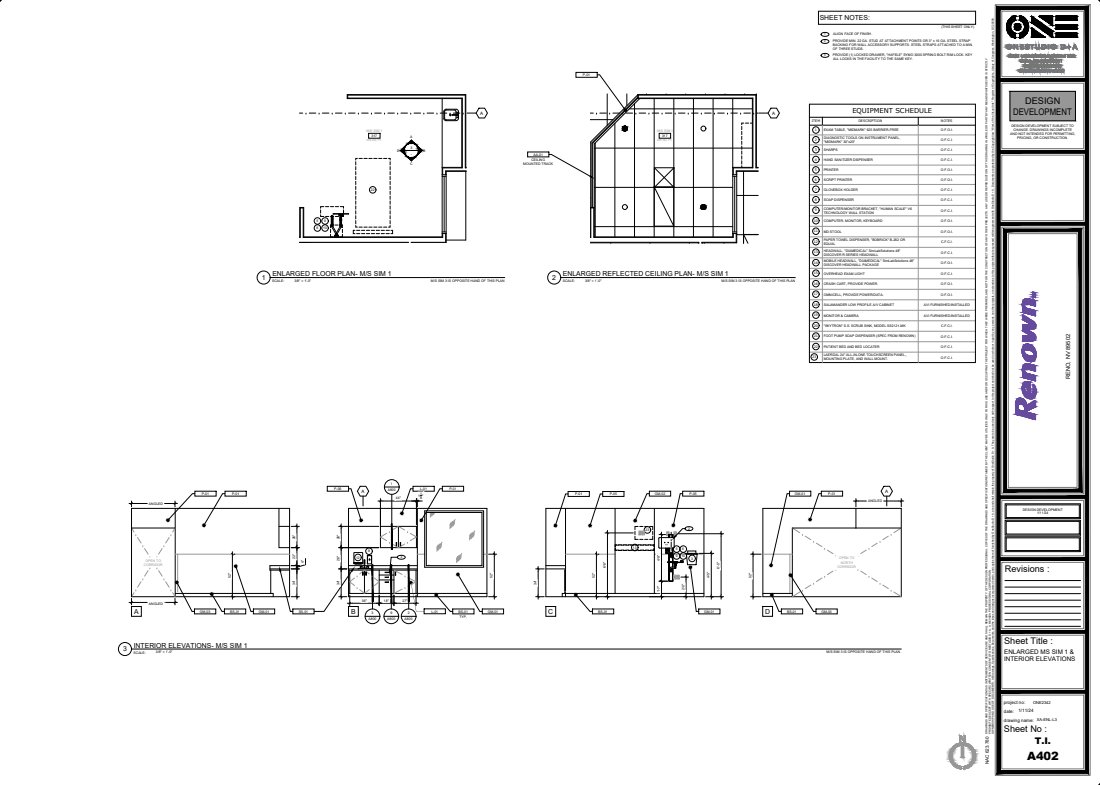

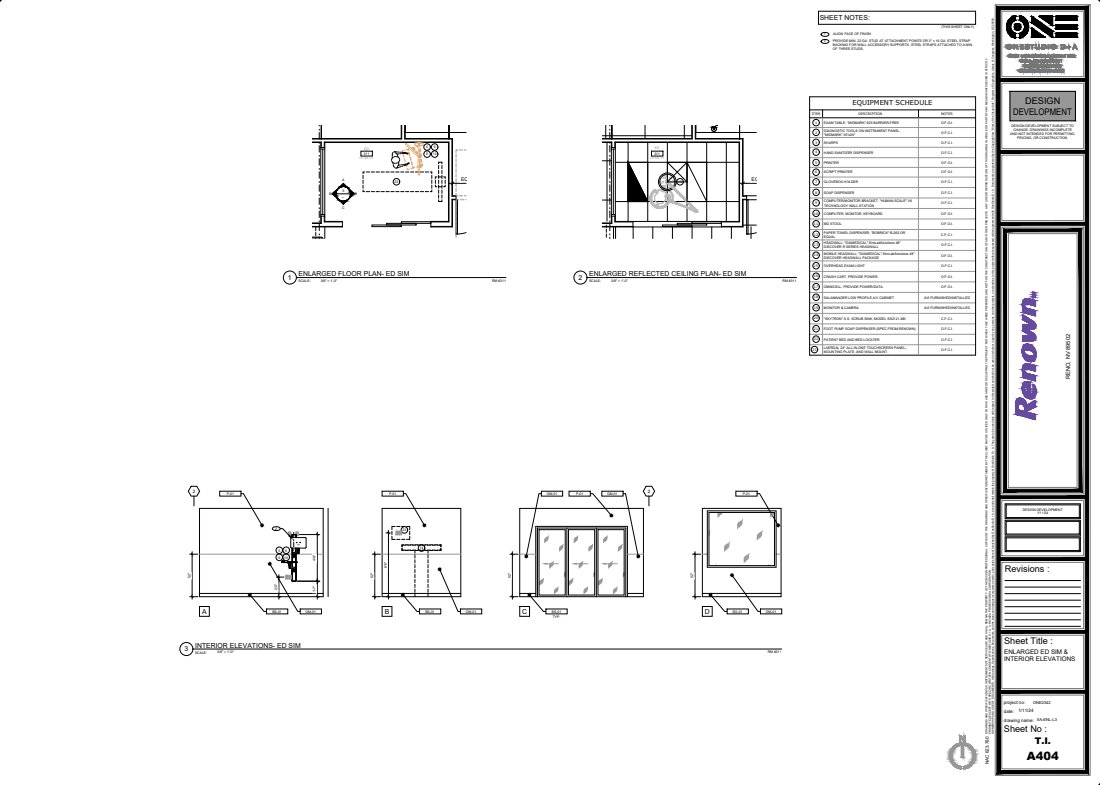

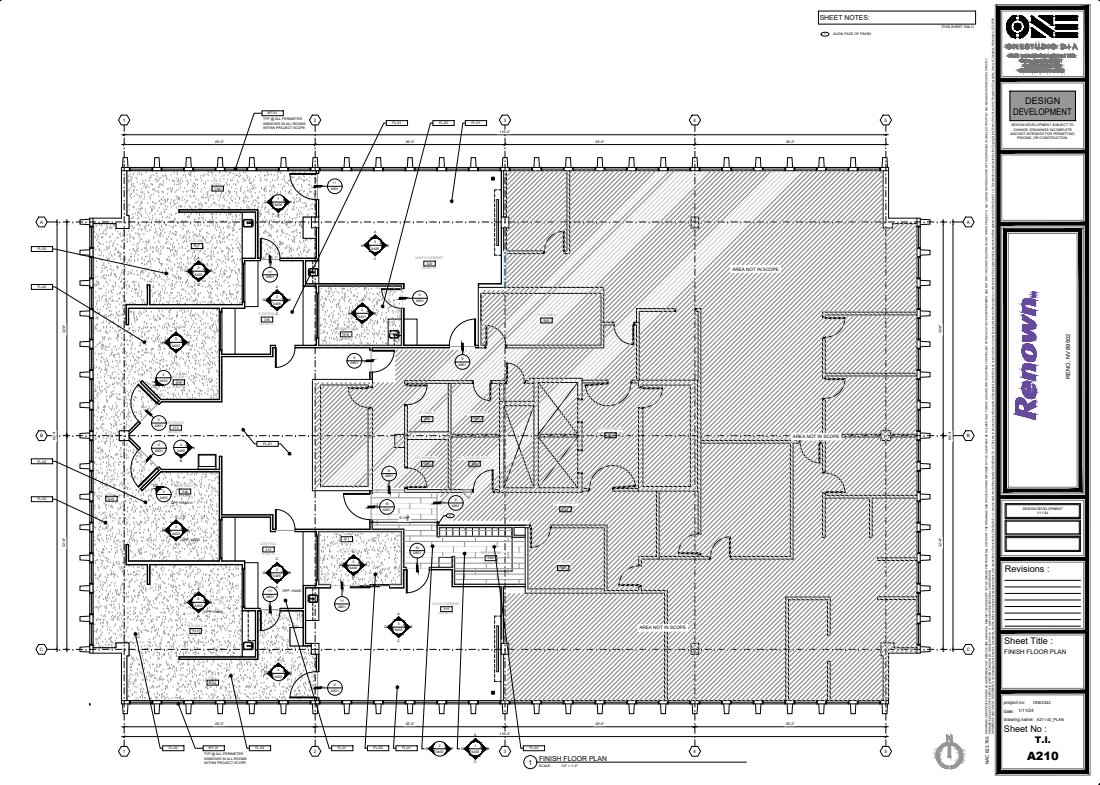

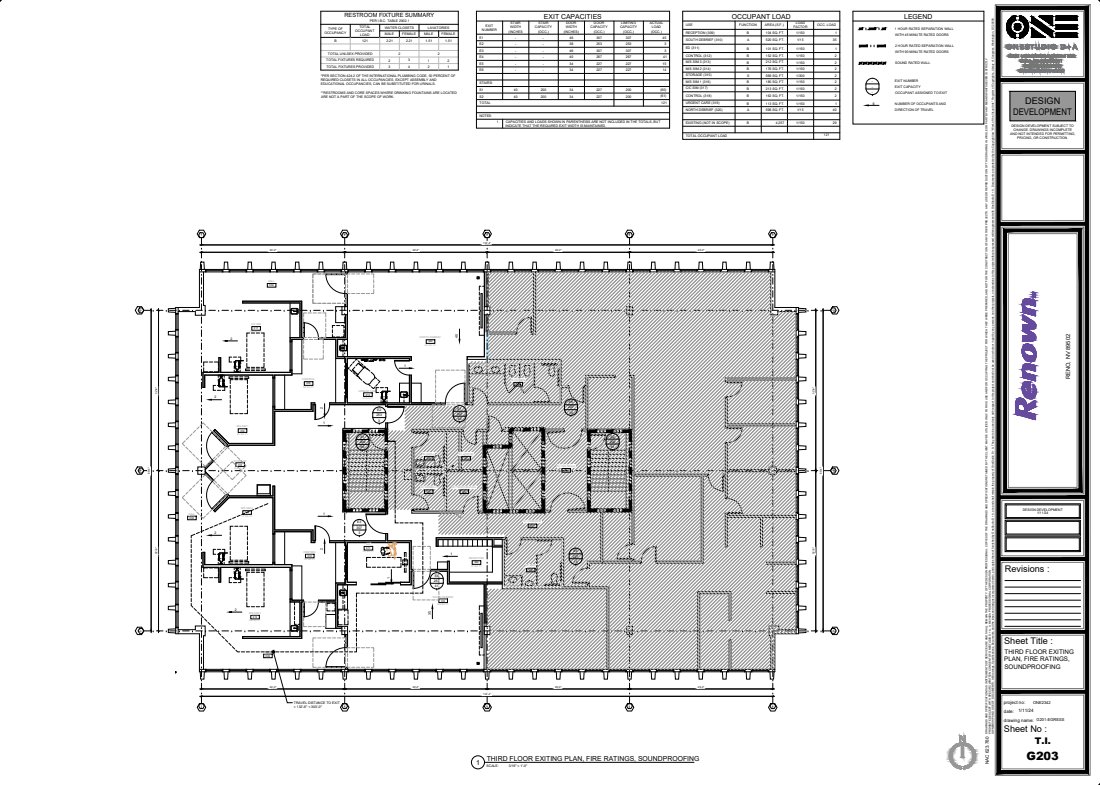

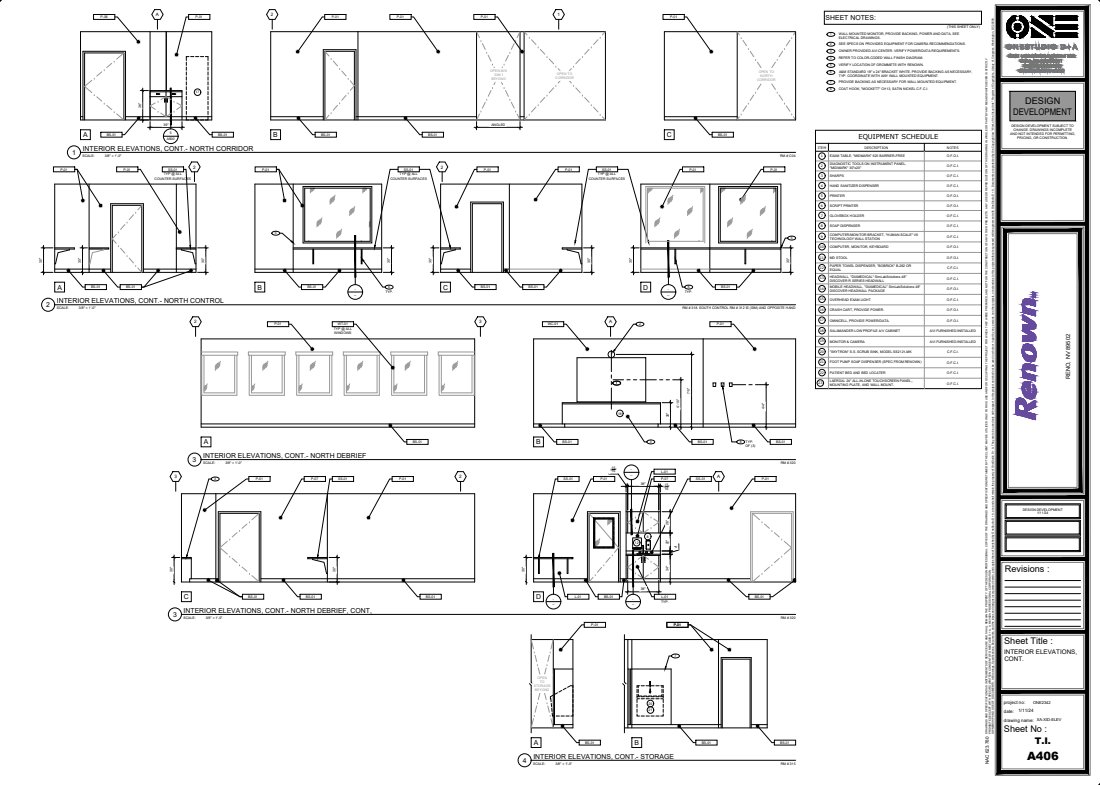

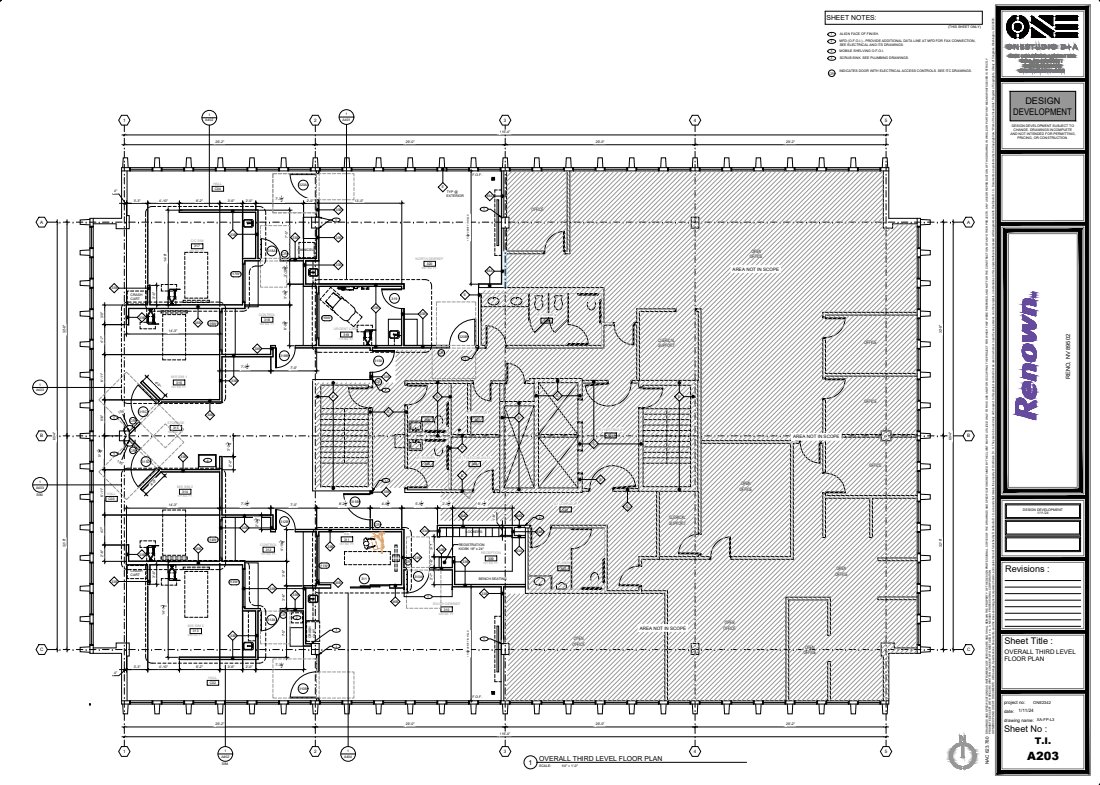

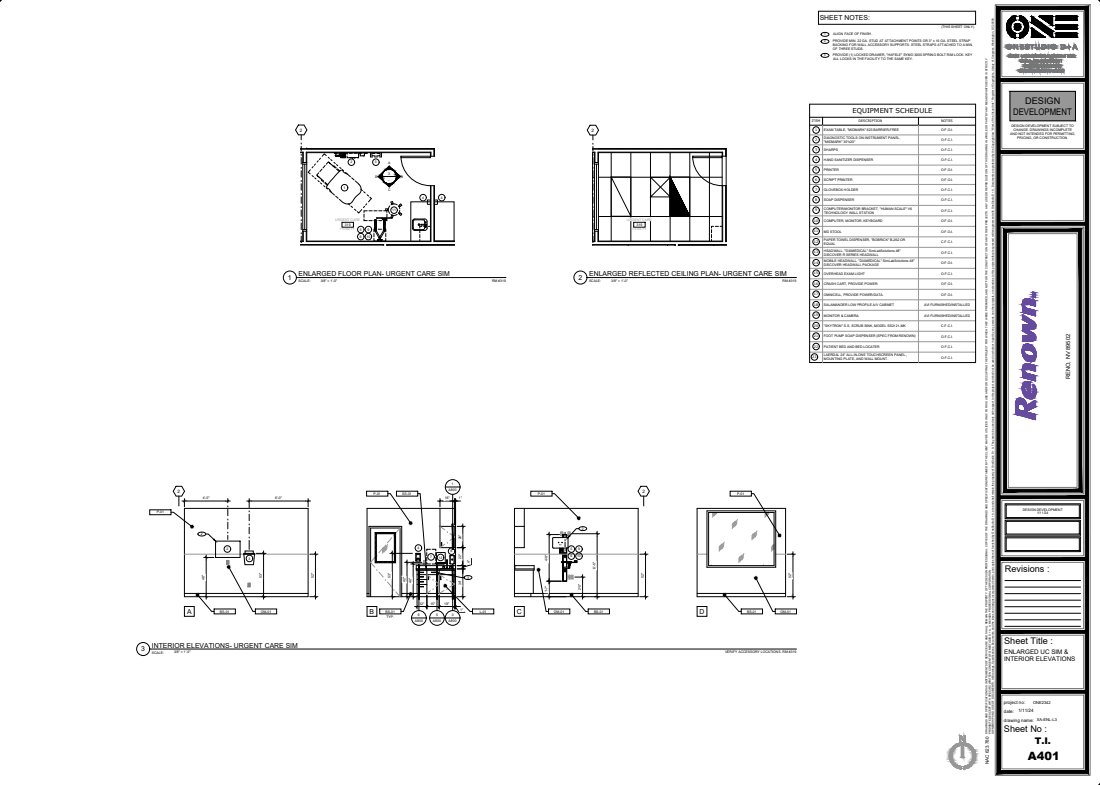

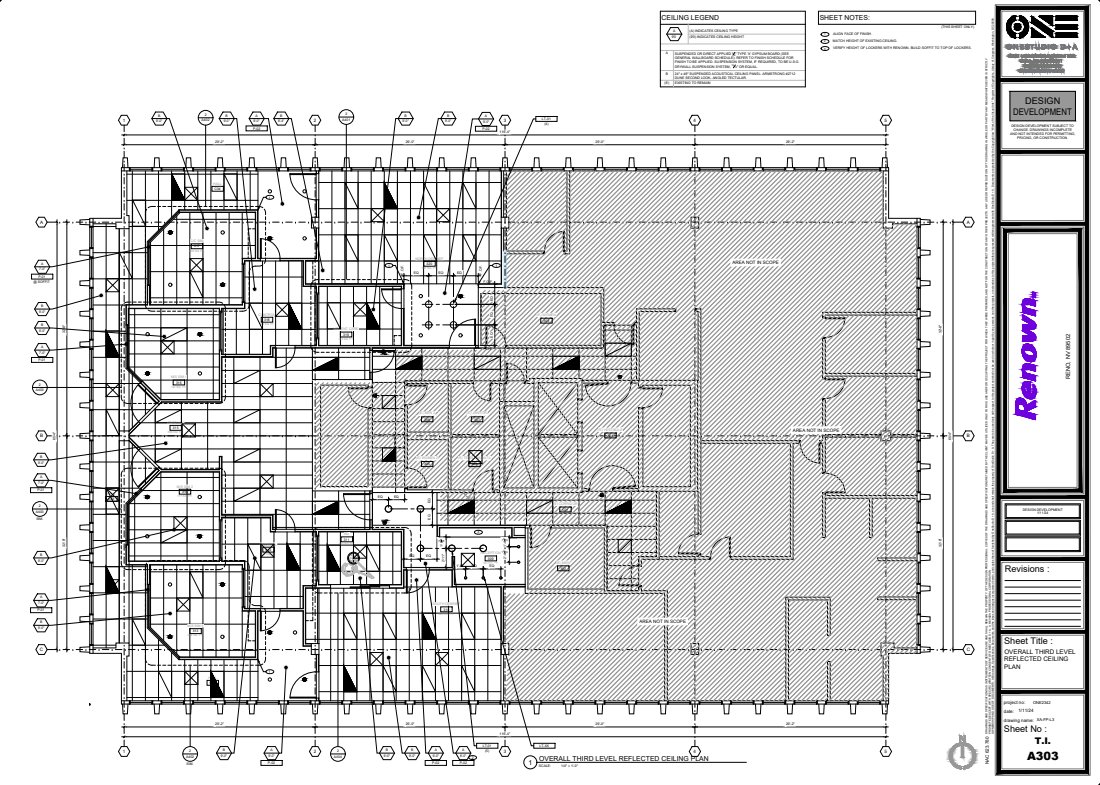

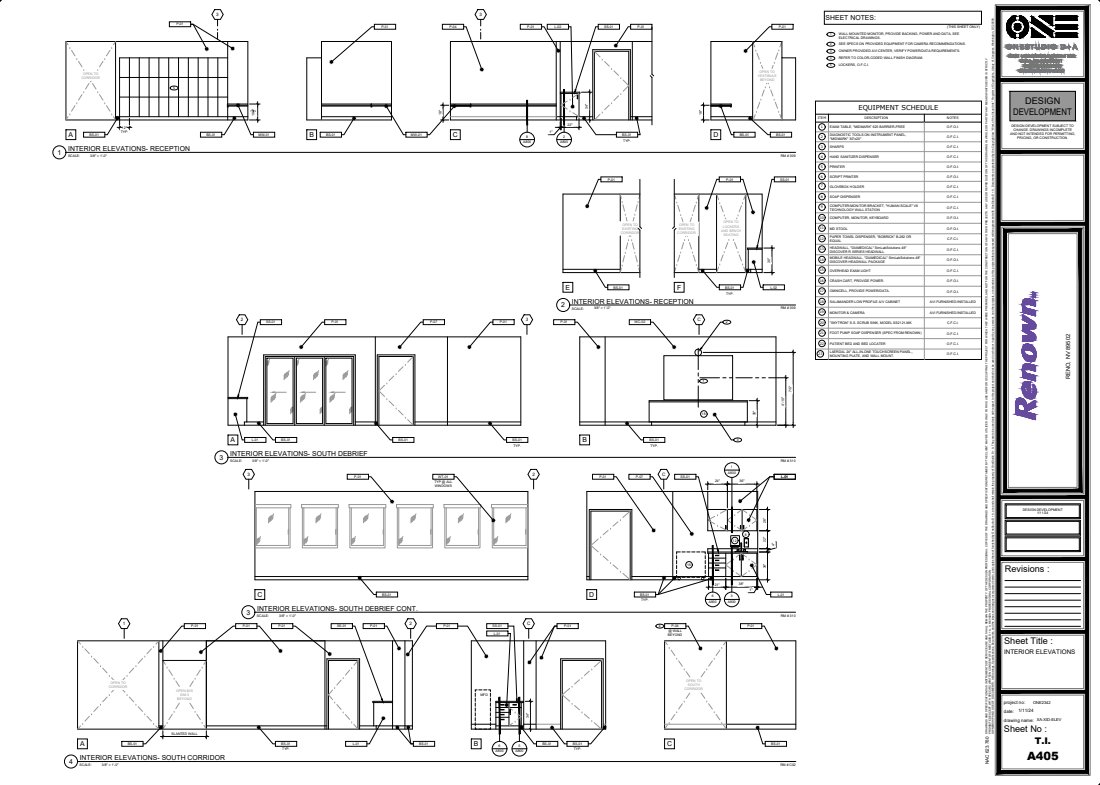

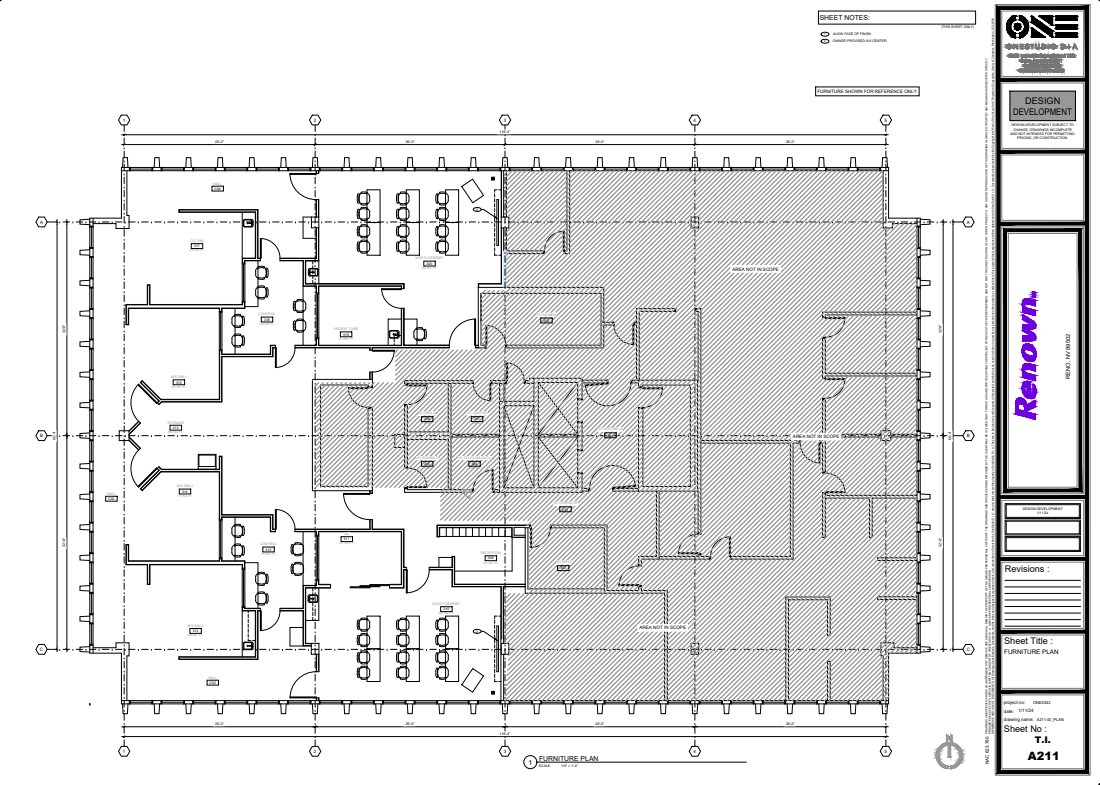

Field measurements, existing conditions, and drafted plans for a tenant improvement under the supervision of OneStudio D+A. (Click the right side of the image to view the complete set).
